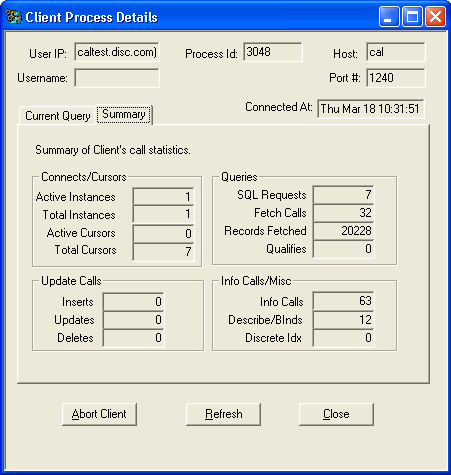

Client Details

The Client Details window shows the connected user's IP address, log on user name (if applicable), client process Id number, Host name, ODXNET listener port number and the date and time the connection was made.

At the bottom of the window are three buttons that allow you to abort the current client connection, refresh the data being displayed for this client, and close the client details window.

In the middle of the window is a tab control with two tabs labeled:

Current Query - Shows details about the current or last query processed through this client connection.

Summary - Shows statistics concerning the query.

Current Query

The Current Query tab shows some general information about the current or last query executed through this client listener. This includes the current state of the query, the time the query started and the time elapsed to reach the current state. The actual statement processed is displayed at the bottom and a button labeled "Stop Query" allows you to abort the query if it is taking too long to process.

Summary

The Summary tab displays statistical information about the client connection and the calls that have been processed through this connection.
